96 n-type mono-TOPcon cells
Module connector: EVO2
STC power: 460 Wp
Colour of frame: schwarz eloxiert
Cell technology: mono
Number of cells: 96 Pieces
Package: 37 Pieces
Dimensions in mm: L: 1762 mm B: 1134 mm H: 30 mm
Weight: 24 kg
Cable length plus: 400 mm
Cable length, minus: 200 mm

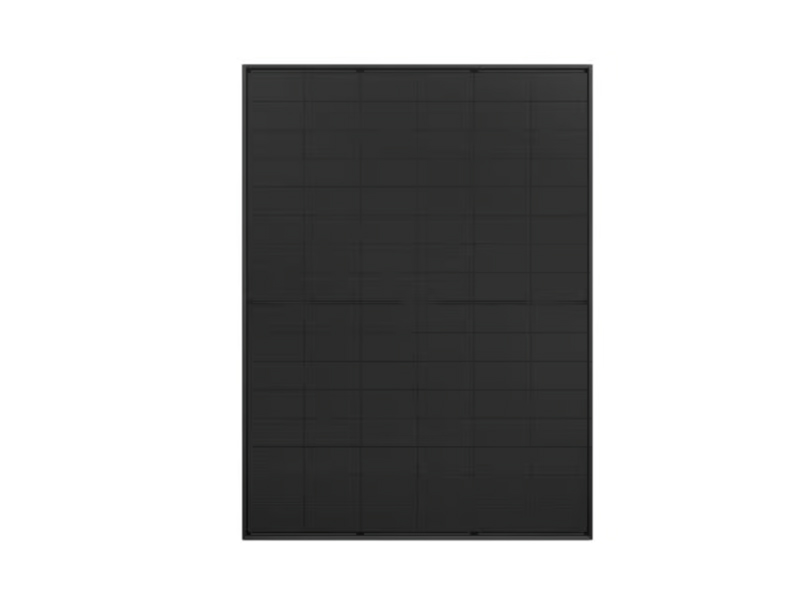

Photovoltaic module with 96 n-type mono-TOPcon cells and 460 Wp nominal output. Glass-glass module with black anodised frame, black foil and EVO2 connector. Technical data according to current data sheet, extract: LxWxH: 1762x1134x30 mm and weight: 24.0 kg, Umpp: 30.71V, Impp: 14.98 A, Uoc: 36.38 V, Isc: 15.86 A, Umax: 1500 V, TKUoc: -0.25 %/K. Warranty according to warranty conditions JinkoSolar product/performance warranty of 25 or 30 years.
JinkoSolar is a global leader in the solar industry. JinkoSolar sells its solar products, solutions and services in over 80 countries worldwide. JinkoSolar is a pioneer in the successful development of a vertically integrated value chain for solar products.
go to the website of JinkoSolar
go to the service of JinkoSolar
Data sheet
ds Jinko Tiger Neo 48HL4M-DB 450-470Wp
10-Tiger_Neo_48HL4M-DB_JKM450-475N-48HL4M-DB-Z1-EU.pdf
