Explorer the new generation of back contact modules
Module connector: EVO2
STC power: 450 Wp
Colour of frame: schwarz eloxiert
Cell technology: mono
Number of cells: 144 Stück
Dimensions in mm: L: 1762 mm B: 1134 mm H: 30 mm
Package: 36 Pieces
Weight: 22 kg
Cable length plus: 1100 mm
Cable length, minus: 1100 mm
Product advantages:
• Innovative bifacial technology
• Robust and durable
• Elegant and modern full-black design
• Comprehensive warranties
Product features:
• Power rating Pmax: 450 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): black
• Max. system voltage: 1500 V
• Connector type: MC4 EVO 2A
• Cable length: 1.2 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: IEC 61730
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 24.5 kg
• Warranty: 30 years performance warranty and 25 years product warranty

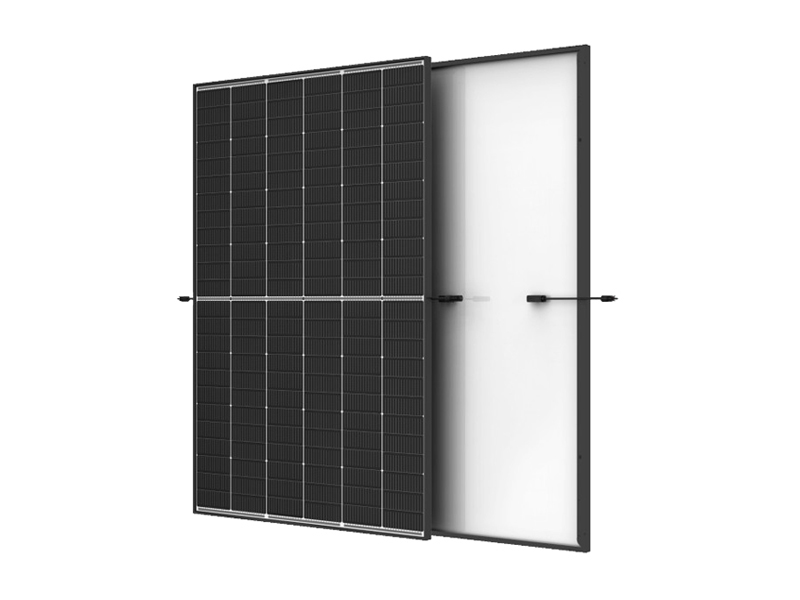

DMEGC, one of the world's leading providers of renewable energy, presents the DM450M10RT-B54HBB solar module with an output of 450 Wp. With a strong focus on quality, DMEGC uses high-quality materials and state-of-the-art production facilities to ensure maximum reliability and value retention. The DM450M10RT-B54HBB is a bifacial module that can generate electricity on both sides thanks to bifacial technology. This innovative technology allows the use of solar radiation and increases the energy yield. The robust double glass construction makes the module particularly resistant to harsh environmental conditions. The solar panel has been designed with aesthetics in mind. The full-black design gives the module a modern look that blends harmoniously into any environment. DMEGC's commitment to quality is reflected in the warranty: DMEGC offers a 30-year performance warranty and a 25-year product warranty on this module.
