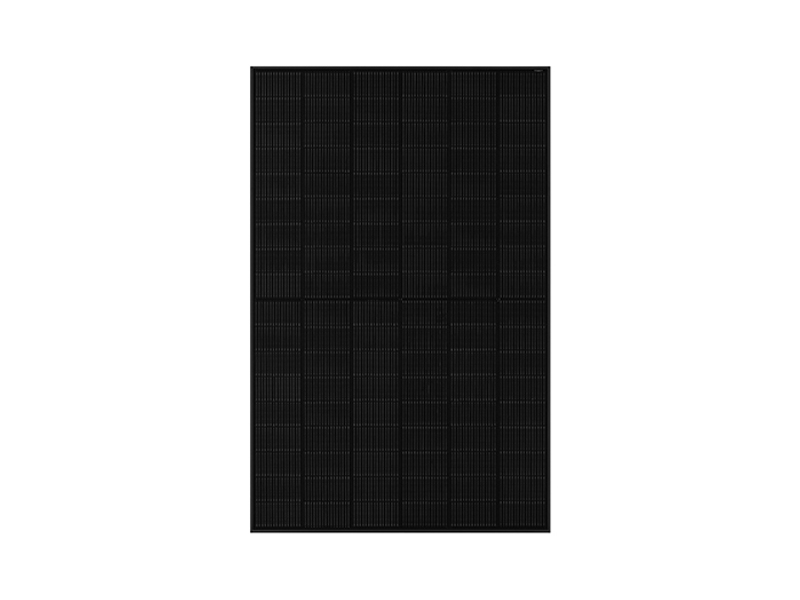

Glass-glass, bifacial, full black, MC4-EVO 2
• Bifacial power generation
• Improved low-light performance
• Full-black design
Product features:
• Power rating Pmax: 450 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): black
• Backsheet colour (roof side): black
• Max. system voltage: 1500 V
• Connector type: MC4 EVO 2
• Cable length: 1.2 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: UL/Type 38/Class C
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 22.0 kg
• Warranty: 30 years performance warranty and 25 years product warranty
Technical Data
| Module fire performance.: | C, IEC 61730, UL 61730 |
| Max. surface load capacity testload(Pa): | 5400 |
| Max. wind speed capacity testload(Pa): | 2400 |
| Number of cells (pieces): | 108 |
| Bifacial: | yes |
| Busbars (pcs): | 16 |
| Backsheet colour roof side: | black |
| Backsheet colour cell side: | black |
| Protection degree: | IP68 |
| Glass thickness front side (mm): | 1,60 |
| Hail resistance: | HW 3 |
| Integrated module optimization: | no |
| Length of cable minus (cm): | 120,00 |
| Length of cable plus (cm): | 120,00 |
| Short circuit current Isc (A): | 14,48 |
| Open circuit voltage Uoc (V): | 39,30 |
| Power tolerance: | +5 Wp |
| Max. reverse current (A): | 30 |
| Max. system voltage (V): | 1500 |
| Module structure: | glass-glass |
| Module efficiency (%): | 22,50 |
| Power rating Pmax (Wp): | 450 |
| Nominal voltage Umpp (V): | 32,82 |
| Nominal current Impp (A): | 13,71 |
| Frame colour: | black |
| Frame type: | framed |
| Connector type: | MC4 Evo 2 |
| Temperature coefficient Isc (%/C): | 0,0460 |
| Temperature coefficient Pmpp (%/C): | -0,2900 |
| Temperature coefficient Uoc (%/C): | -0,2600 |
| Number of cells along: | 18 |
| Number of cells across: | 6 |
| Cell width (mm): | 182,000 |
| Cell length (mm): | 91,000 |
| Cell cut: | half cut |
| Cell type: | monocrystalline |
Article details
| Manufacturer: | JA Solar |
| Manufacturer item name: | JAM54D41-450/LB |
| Supplier item: | JAM54D41-450/LB |
| Intrastat country of origin: | China |
| Intrastat product number (HS-code): | 85414300 |
| Brand: | JA Solar |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Protection Class 2 |
| Manufacturer part number: : | JAM54D41-450/LB |
Packaging
| Amount Pal. p. Cont.: | 26 |
| Amount p. Cont.: | 936 |
| Amount per Pallet: | 36 |
| Pal. weight (kg): | 817,00 |
| Pal. dim. LxBxH (mm): | 1800x1150x1200 |
| Pack. material: | cardboard box |
Dimensions
| Width without packaging (mm): | 1.134,00 |
| Weight without packaging (kg): | 22,000 |
| Height without packaging (mm): | 30,00 |
| Length without packaging (mm): | 1.762,00 |
Warranty
| Warranty provider: | JA Solar |
| Performance warranty (yr): | 30 |
| Linear degression p.a. in %: | 0,4 |
| Product warranty (yr): | 25 |
| Standard product warranty (yr): | 25 |
| Initial % for linear warranty: | 99 |
JA Solar is a leading global provider of photovoltaic power generation solutions. JA Solar's JAM54D41 LB solar module is equipped with bifacial technology, which enables power generation on both sides. This technology increases yield and improves energy efficiency by utilising both the front and back sides of the PV module. In addition, the module has improved low-light performance, ensuring very good performance even at low irradiation. Another highlight is the elegant full-black design, which enables seamless integration into various building architectures. JA Solar offers a 30-year performance warranty and a 25-year product warranty for this product.
