For mounting C-rails

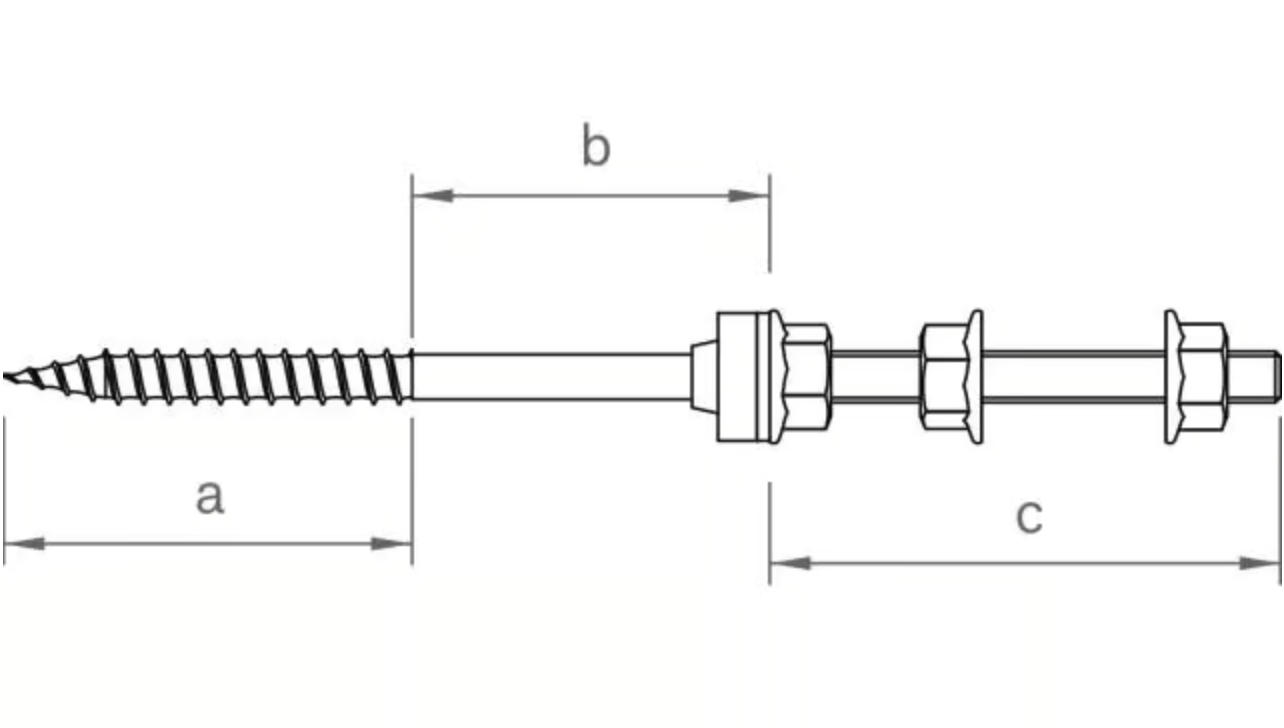

Dimensions in mm: a: 75 b: 25 c: 100
Package: 3000 Pieces
Weight: 0.193 kg
For Corrugated roof & Trapezoidal metal roof

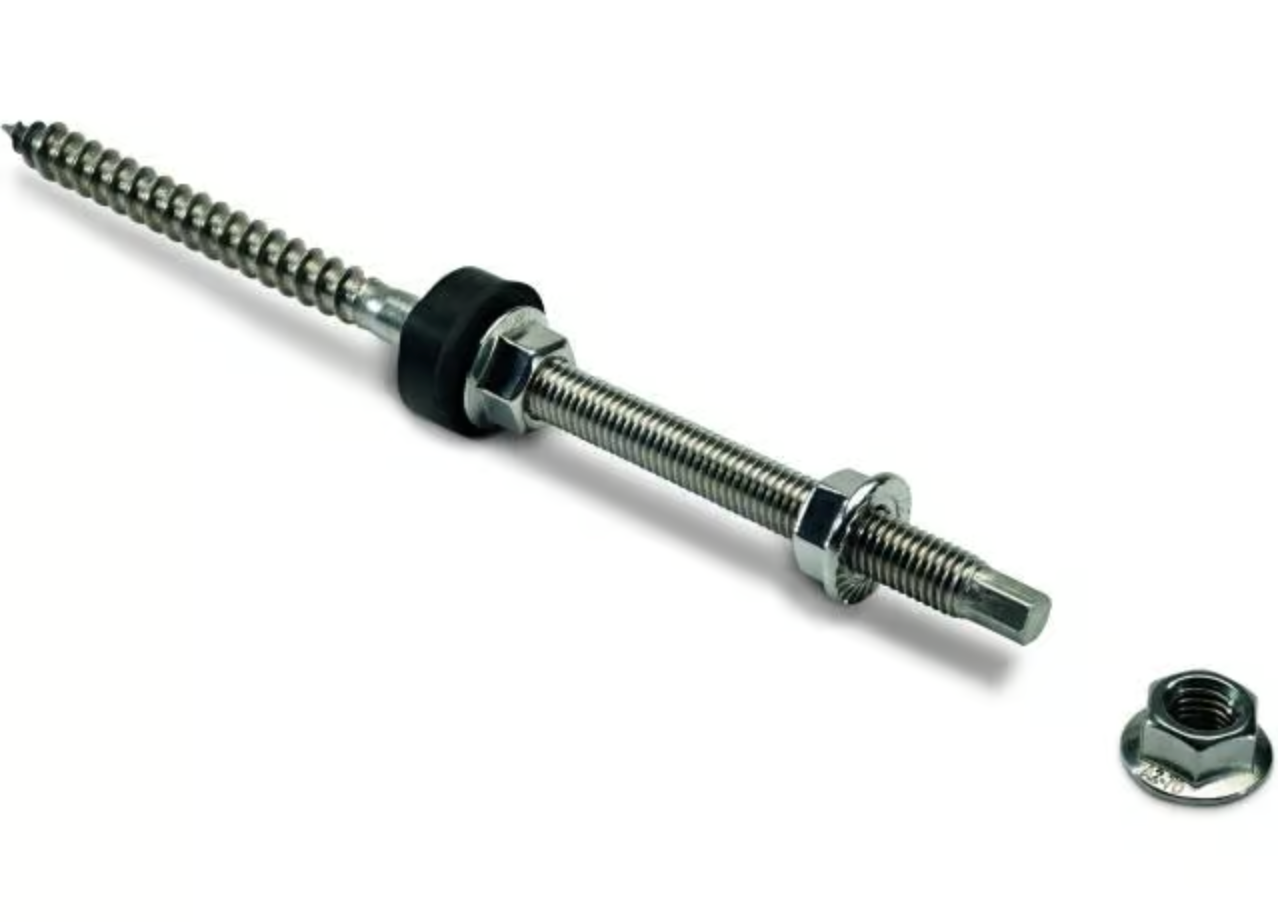

Stock screw for timber purlins with hexagon drive 9 AF, for mounting C-rails, pre-assembled with EPDM seal and 18 AF locking nuts.
When mounting on corrugated Eternit and sandwich roofs, fasten the photovoltaic system directly in the purlins of the roof construction. For wooden purlins you need the HP hanger bolt set, for steel purlins you need the SP hanger bolt set. Due to the central connection of the C-rails to the hanger bolt, the load is transferred centrally to the hanger bolt – this means that it is not subjected to any additional bending stress. By connecting the hanger bolt to the rail floor, it is possible to adjust the height and the installation can be levelled – this allows you to create a homogeneous module field even on uneven roofs.
Valin New Energy, focuses on solar bracket installation solutions for TPO/PVC membrane roofs. Meanwhile, we boast large-scale manufacturing capabilities for rooftop solar brackets, ground-mounted solar brackets, solar carports, and solar-storage-charging integrated carports.
With five production bases and an annual production capacity of 20GW for solar brackets, we also have overseas offices in Japan, Thailand, and Australia.
Valin adheres to the business philosophy of “Unity, Pragmatism, Innovation, and Development” and is dedicated to providing customers with high-quality, prompt, and efficient products & services.
